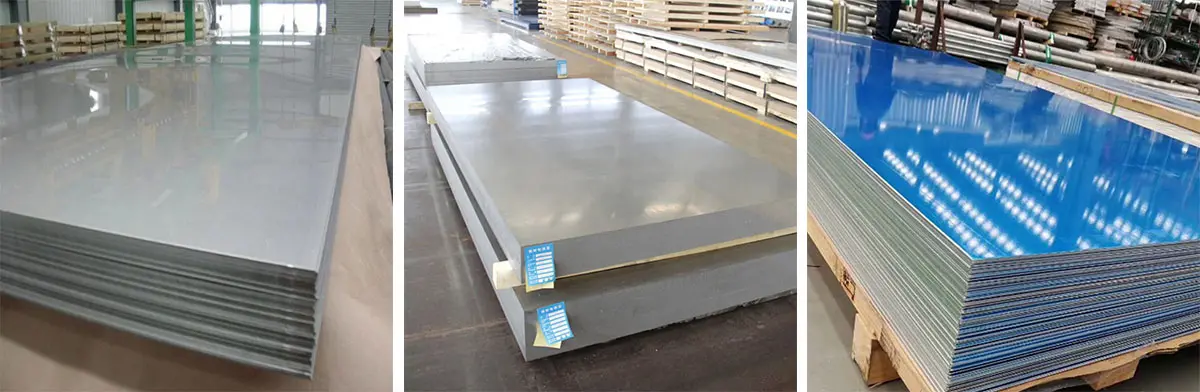

Aluminium Plate
- Grade: 1000/2000/3000/4000/5000/6000/7000
- Temper: O-H112/T3-T8/T351-T851
- Type: Plate
- Application: billboards/kitchen sink
- Width: 1000-2500mm
- Surface Treatment: Coated
- Alloy Or Not: Is Alloy
- Place of Origin: Shandong, China
- Model Number: 1060,1200,1100,2024,3003,3004,5052,,60617075,8011
- Tolerance: ±1%
- Processing Service: Bending, Decoiling, Welding, Punching, Cutting
Product Details
| Grade | 1000/2000/3000/4000/5000/6000/7000 | Processing Service | Bending, Decoiling, Welding, Punching, Cutting |
| Temper | O-H112/T3-T8/T351-T851 | Delivery Time | 15-21 days, 20-30 days |
| Type | Plate | Product name | Aluminum Alloy Plate |
| Application | billboards/kitchen sink | Material | 1100/1050/2024/3003/5052/5083/5086/6061/6082/7021/7075 |
| Width | 1000-2500mm | Thickness | 0.1-200mm |
| Surface Treatment | Coated | Alloy | 1050/1060/1100/3003/3004/5005/5052/5083/3005/8011 |
| Alloy Or Not | Is Alloy | MOQ | 5 Tons |
| Place of Origin | Shandong, China | Payment Terms | 30%T/T Advance + 70% Balance |
| Model Number | 1060,1200,1100,2024,3003,3004,5052,,60617075,8011 | Package | Strong Sea Worthy Wooden Package |
| Tolerance | ±1% | Surface | Brush.and Blast.checkered.embossed |
Specifications
| Standard | JIS G3141,DIN1623,EN10130 | |
| Thickness | 0.15-6.0mm（Aluminum sheet） 6.0-25.0mm（Aluminum plate） | |
| Temper | H12, H22, H32, H14, H24, H34, H16, H26, H36, H18, H28, H38, H19, H25, H27,H111, H112,H241, H332, etc. | |
| Surface Treatment | Mill Finished, Anodized, Embossed, PVC Coated, etc | |
| Alloy | Application field | |
| 1xxx | 1050 | Insulation, food industry, decoration, lamp, traffic signs, etc. |
| 1060 | Fan blade, Lamps and lanterns, Capacitor shell, Auto parts, Welding parts. | |
| 1070 | Capacitor, Rear panel of vehicle refrigerator, charging point, heat sink, etc | |
| 1100 | Cooker, building material, printing, heat exchanger, bottle cap, etc | |
| 2xxx | 2A12 | Aircraft structures, rivets, aviation, machinery, missile components, the card wheel hub, propeller components, aerospace parts, car parts, and various other structural parts. |
| 2024 | ||
| 3xxx | 3003 | Aluminum curtain wall panel, aluminum Ceiling, Electric cooker bottom, TV LCD backboard, storage tank, curtain wall, building construction panel heat sink, billboard. Industrial floor, air conditioning, refrigerators radiators, Make-up board, Prefabricated house, etc. |
| 3004 | ||
| 3005 | ||
| 3105 | ||
| 5xxx | 5052 | Marine and transportation material, railway carriage's inner and outer cabinet, oil and chemical industry storage device, equipment and medical device panel, etc. |
| 5005 | Marine applications, bodies of boats, buses, trucks and trailers. Curtain wall panel. | |
| 5086 | Ship board, deck, bottom and edge panel, etc. | |
| 5083 | Tanker, oil storage tank, drilling platform, ship board, deck, bottom, welded parts and edge panel, railway carriage's board, automotive and aircraft panel, cooling device and automotive molding, etc. | |
| 5182 | Tanker body, marine facilities, pressure container, transportation, etc. | |
| 5454 | ||
| 5754 | ||
| 6xxx | 6061 | Railway inside and outside parts, board and bed plate. Industry molding Highly stressed applications include Roofing construction, transportation, and marine as well as mould. |
| 6083 | ||
| 6082 | ||
| 6063 | Auto parts, architectural fabrication, window and door frames, aluminum furniture, electronic components as well as various consumer durable products. | |
| 7xxx | 7005 | Truss, rod/bar and the container in transportation vehicles; Large-sized heat exchangers. |
| 7050 | Molding (bottles) mode, ultrasonic plastic welding mold, golf head, shoe mold, paper and plastic molding, foam molding, lost wax mold, templates, fixtures, machinery and equipment. | |
| 7075 | The aerospace industry, military industry, electronics, etc. | |
