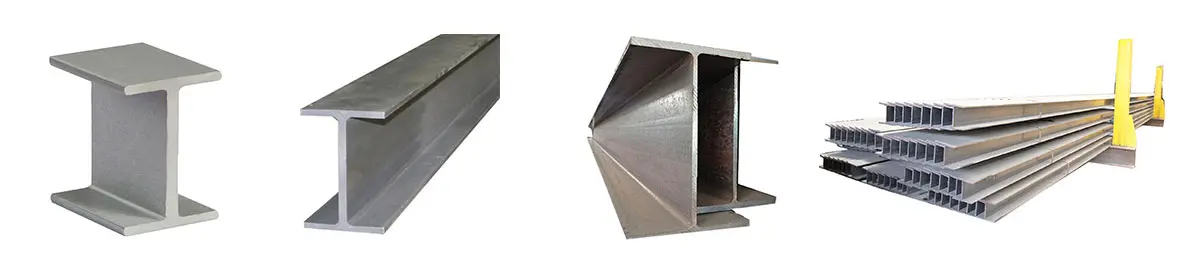

H-Beam
- Place of Origin: Shandong, China
- Grade: Q235/Q235B/Q345/Q345B/SS400
- Technique: Hot Rolled
- Thickness: 0.8- 25mm
- Application: Mechanical & Manufacture, Industry
- Length: Customers' Requirements
- Standard: ASTM
- Flange Width: 100-1000
- Flange Thickness: 4.5-70
- Web Width: 96-1056
- Web Thickness: 3.2-45
- Model Number: TG-201
- Tolerance: ±1%
- Processing Service: Bending, Welding, Decoiling, Punching, Cutting
Product Details
| Material | 201,304,304l,321,316,316l,310,310s,etc | MOQ | 20 Metric Ton |
| H*B | 100*100-900*300mm | Packaging Details | Bundled with firm steel straps, easy to load |
| T1 | 4.5-21mm | Delivery Time | 20 days after deposit |
| T2 | 7-35mm | Payment Terms | L/C, T/T, or Western Union |
| Technique | Hot Rolled, Cold rolled | Supply Ability | 50000 Metric Ton/Metric Tons per Month |
| Application | workshop, warehouse, plant, Steel web frame structure, Steel H-column and steel H-beam, Portal frame products, High rise building | ||
Specifications
| Place of Origin | Shandong, China | Model Number | TG-201 |
| Grade | Q235/Q235B/Q345/Q345B/SS400 | Tolerance | ±1% |
| Technique | Hot Rolled | Processing Service | Bending, Welding, Decoiling, Punching, Cutting |
| Thickness | 0.8- 25mm | Product name | H-Beam |
| Application | Mechanical & Manufacture, Industry | Technical | Hot Rolled Molding |
| Length | Customers' Requirements | Surface | Natural Surface |
| Standard | ASTM | Keywords | Hot Rolled Mild Steel Beam |
| Flange Width | 100-1000 | Certificate | ISO9001 |
| Flange Thickness | 4.5-70 | MOQ | 3 Tons |
| Web Width | 96-1056 | Payment terms | L/C T/T |
| Web Thickness | 3.2-45 | Delivery Term | 5-10days |
Application range of H-beam
- Beam and column components in steel structures of industrial and civil buildings.
- Steel structure load-bearing supports for industrial structures.
- Steel piles and supporting structures for underground works.
- Industrial equipment structure such as petrochemical and electric power.
- Large-span steel bridge members.
- Ship and machinery manufacturing frame structure.
- Girder brackets for trains, cars, and tractors.
- Port conveyor belt, highway baffle bracket.
Technical Rationality of Application of Rolled H-Beams
The use of H-beams in industrial and civil buildings not only saves labor and costs but also reduces the amount of steel used compared to commonly used I-beams. If the steel structure of the workshop adopts a hot-rolled I-beam and hot-rolled wide flange h-beam, the steel consumption can be reduced by 15%-20%.
The research and development direction of Laigang H-beam
Refractory, weathering and seismic series H-beams for construction, international advanced standard H-beams, high-strength controlled rolling and controlled cooling H-beams and other varieties; develop light and thin-walled, unequal width and unequal thickness and other special-shaped H-beams; develop weather resistance for railway vehicles H-beams, H-beams for power transmission and transformation towers and mast structures, H-beams for offshore oil platforms and other products. Comprehensively upgrade the product grade of the existing H-beam.
